Crombie DesignWerks
3D Mechanical Design

pic 1

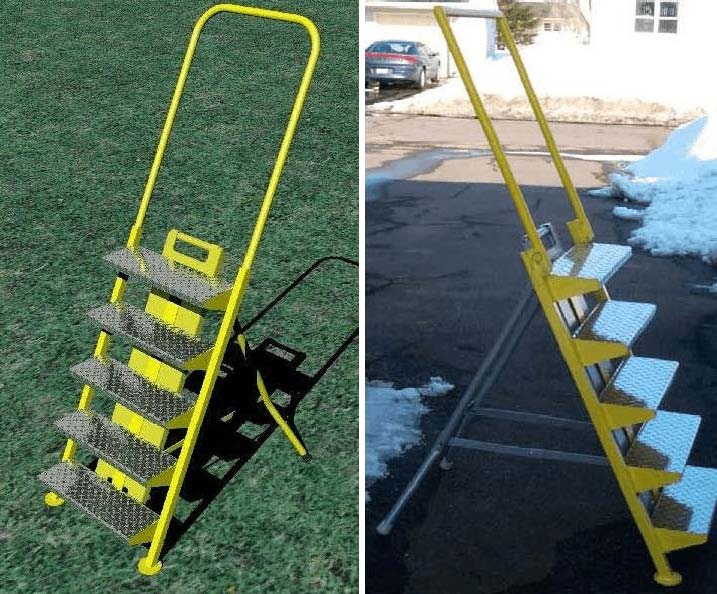

Ladder accessory for use with Amateur Astronomers Telescopes.
The ladder is constructed of aircraft grade aluminum and diamond
plate sheet, welded construction and  is powder coated.
Cad Rendered image                                                      Prototype


pic 2

Incubator Transport Cart.  For use in ambulances, planes, helicopters and hospitals
for the transport of premature infants.  The unit is constructed of aluminum and
stainless steel and will carry loads up to 200 kg,
Cad Rendered Image                                                                                 Prototype

Models designed in Rhinoceros Design Software and Rendered in either Flamingo Raytrace
or Penguin Non-Photorealistic rendering packages.

pic 3

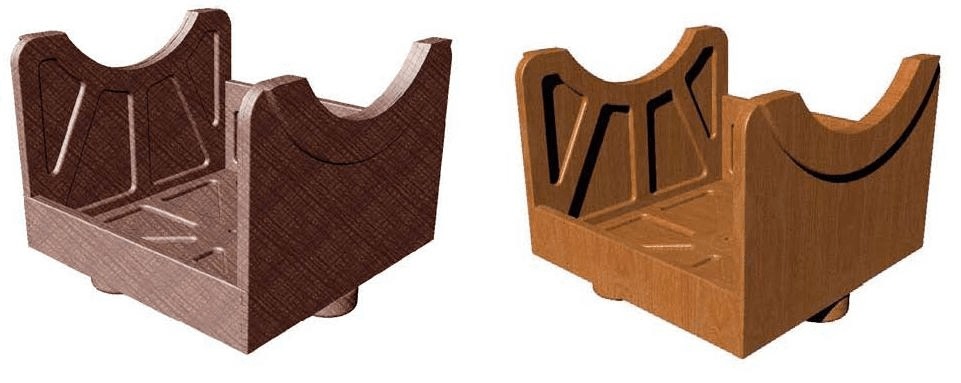

Rockerbox for Dobsonian Style Telescope for Amateur Astronomers
Penguin Render in Cartoon Render with pencil fill              Flamingo Render using wood decal material

pic 4

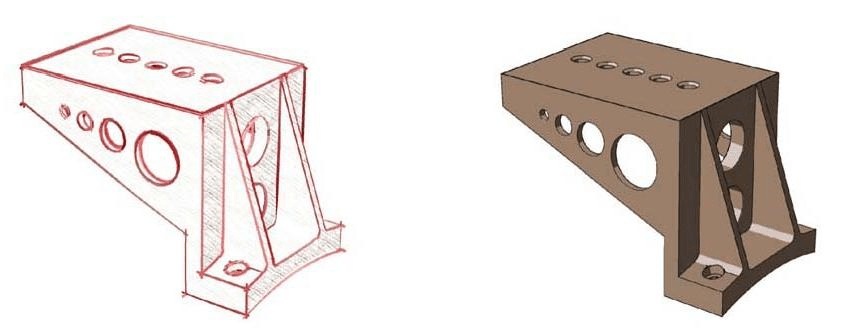

Camera Mount for Celestron C-8 Telescope
Pencil Sketch Render                                          Cartoon Render with single color fill

Examples of designs in Rhino3d and renders in Flamingo

pic 5

Tubing Bender                                            MP3 Player Concept
